Your home, alive on one floor plan
House Plan is a single HACS package: a Home Assistant integration with server-side storage and a WebSocket API, plus a Lovelace card. Draw the plan with your mouse right on the dashboard — no YAML, no Inkscape, no external editors — and watch lights, climate, sensors, robot vacuums and the sun itself live on it.
Login demo / demo · the stand resets itself every hour — break it freely
Everything on the plan, everything by mouse
GUI-first from the first click: the plan is configured right on the dashboard, and the layout lives on the Home Assistant server.

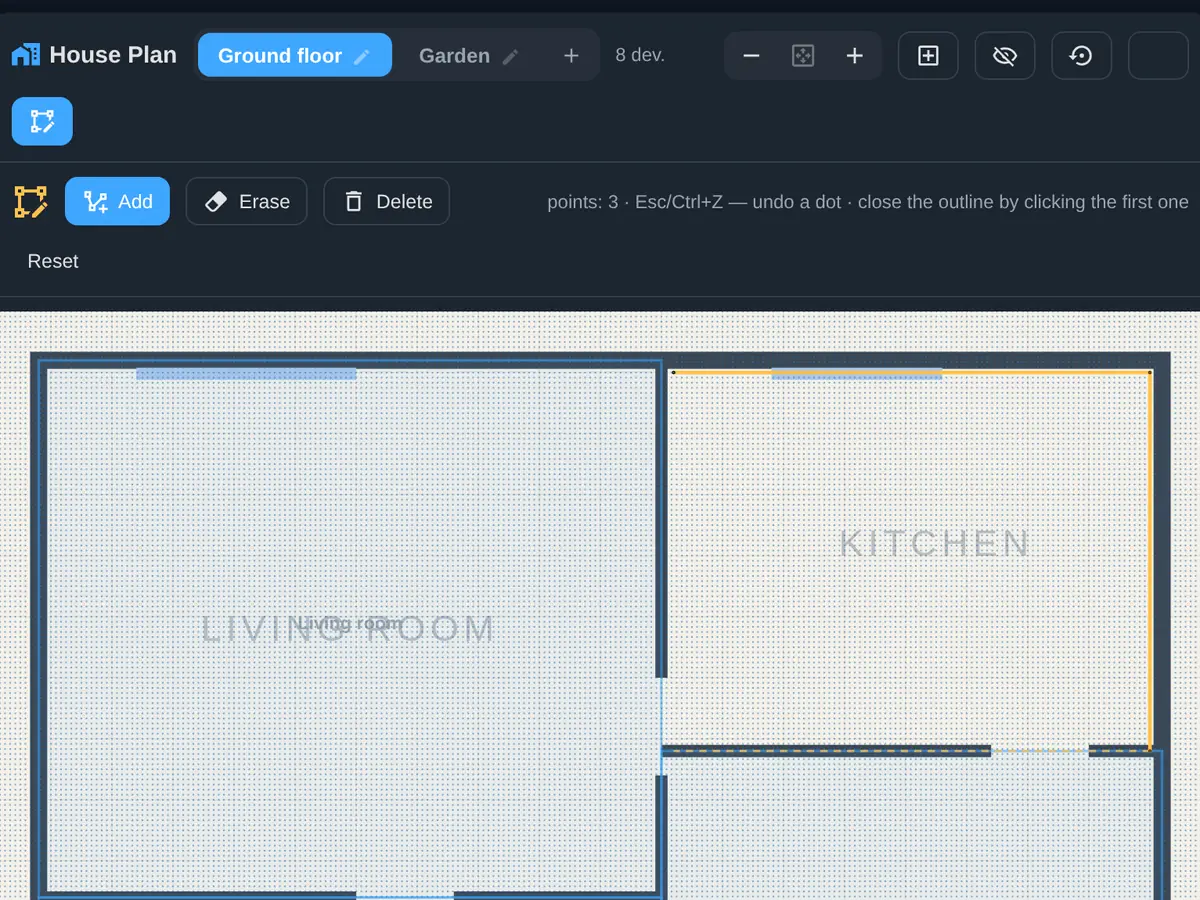

GUI-first editors
Rooms as polygons with islands and virtual walls, doors and windows, a decor layer — all drawn with the mouse. Alignment helper, ruler in meters or feet. Upload a picture of your plan or draw from scratch.
Lights that answer
Toggle a light with a click — a yellow underlay means it is shining right now. Group lamps behind “dumb” wall switches so the plan shows what actually burns.
Room climate
Temperature and humidity per room with a comfort-colored fill — one glance tells you where it is stuffy or damp.
Zigbee signal map
See LQI link quality right on the plan and find the dead corners of your mesh.
Alarms you can't miss
Leak and smoke sensors pulse red on the plan the moment something goes wrong.
Safe tap actions
Info, more-info, toggle, or run an automation, script or scene — with confirmation. Locks and garage doors never fire from an accidental tap.
Virtual devices
Add icons for things Home Assistant doesn't know — a boiler, a filter — with descriptions, links and PDF manuals. The plan becomes your home's knowledge base.
One plan for every screen
The layout is stored on the Home Assistant server: one plan for all screens and users, synced live. Multi-floor, English and Russian included.
The sun, on time
A compass sets your north, and the plan breathes with the day: real sunlight falls through the windows of exterior walls and moves across the floor exactly as the sun moves outside.
A canvas without edges
Draw past the frame — the canvas is endless and the view gathers itself around your rooms. Move and scale a photo of your floor plan underneath, and resize rooms with live dimensions while shared walls follow along.
Your colors, your night
Give a floor or a single room a colour of its own, choose the background, and switch the night glow on independently of what the fill is showing. Overlapping pools of light add up the way real light does.
Light by sources

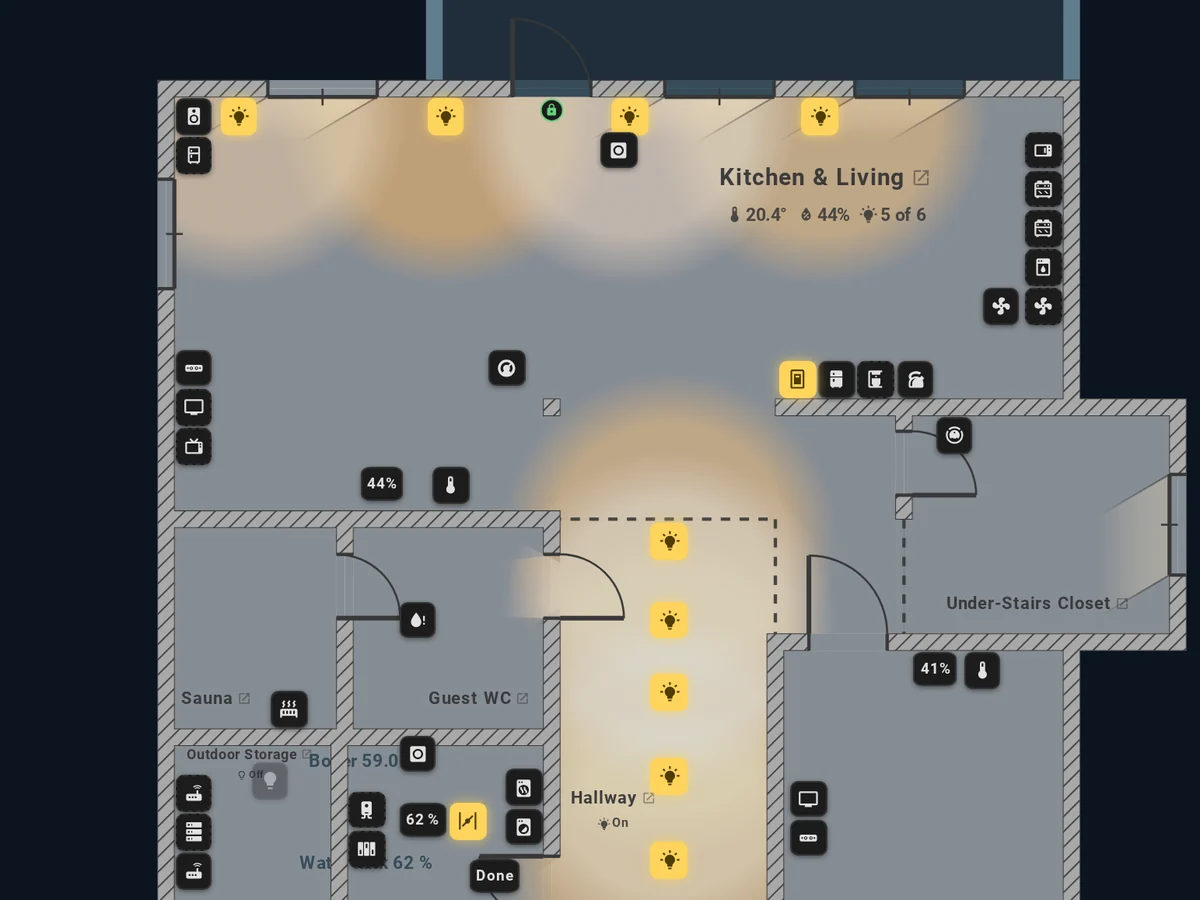

The default mode and the visiting card of House Plan. The house goes dark — and every lamp that is on casts a pool of light in its own color.
Light spills through open doorways, so the plan reads like your real house at night: you see not just which lamps are on, but where the light actually reaches.
Robot vacuums, live
The dock marker stays put while a round puck drives across the plan in real time, pouring its path out from under itself.
The current and the previous cleaning are stored on the server. Calibration takes one click — by room names — or just drag the ghost of the robot's own map into place. When a robot exposes several map sources, House Plan says what it found and lets you choose.
Kiosk mode
A full-screen plan for wall panels: swipe between floors or let the auto-carousel cycle them for you.
Every screen keeps its own icon sizes, so the same plan looks right both on a 7-inch tablet by the door and on the living-room TV.
Not a mockup — this is the card
Every shot below is the live demo stand, straight from a browser.
Built in the open, tested hard
House Plan is MIT-licensed open source. Every release runs the full suite, a 32-scene visual golden matrix and a performance budget gate — and then goes through an independent adversarial audit.
See it alive
Open the demo, log in with demo / demo and click around. The stand resets itself every hour — break it freely.
